Pulsar Core FXQ - Thermal Imaging Scope / Front Attachment

Pulsar Core FXQ - Thermal Imaging Scope / Front Attachment
Quick Transformation

Core FXQ38/ FXQ50/FXQ55 is a combination of thermal imaging monocular and front attachment for day riflescope or observation device. Replaceable eyepiece included in the package allows quick transformation in the course of several seconds.


Core as an Alternative to Thermal Sight

Attachment can become a better alternative to a night vision / thermal scope in the case when optics mounts do not ensure quick mounting and/ or recurrent installation of optics to a correct position. Use of the attachment does not require from a hunter a change in weapon holding position or in style of shooting. Small weight and size simplify controls and do not influence the balance of the rifle significantly.
Price:
NZ$ 6,299.00
0
Out Of Stock
Option:
Sorry we are out of stock!

Core as an Alternative to Thermal Sight

Attachment can become a better alternative to a night vision / thermal scope in the case when optics mounts do not ensure quick mounting and/ or recurrent installation of optics to a correct position. Use of the attachment does not require from a hunter a change in weapon holding position or in style of shooting. Small weight and size simplify controls and do not influence the balance of the rifle significantly.

Night Time Shooting Advantages

Night time shooting with Core coupled with day optic riflescope has a number of positive moments. Such operational characteristics of day optics as significantly larger (in comparison to classic night vision or thermal riflescopes) eye relief, ordinary reticle, variable magnification are preserved.

Point of Impact Stability

Precision optics, original design and software ensure POI stability when attachment is in use. Hunter does not need to make any corrections to position of day scope's reticle when mounting Core.

<
>
<
>
<
>
+
1

Operating Modes

The Core suggests three operating modes, each designed to deliver best possible image in specific viewing conditions. The modes are as follows: “Rocks” (enhanced contrast), “Forest” (low contrast) and “Identification” (improved rendering of hot objects' details).

Additional features

 Calibration

The Core offers three calibration modes: silent manual mode (“M”), automatic (“A”) and semiautomatic (“H”). The “A” mode implies calibration without user participation (process initiation (actuation of the shutter) takes place automatically). In the “H” mode the user decides on his own if calibration is required based on the image quality. Button “Cal” is pressed in this mode. Manual calibration (“M”) is carried out by pressing the button when the lens cap is closed. The “M” mode is recommended for hunting due to silent operation.

 Wireless Remote Control

Wireless Remote Control

The wireless remote control allows basic operations to be fulfilled without resorting to standard controls.

 External Power Supply Option

Core FXQ comes with a universal power adapter which allows connecting riflescope to external power sources via MicroUSB and DC 2.1x5.5 mm. External power sources significantly prolong operation time of device compared to the time provided by standard batteries.

 Fully Waterproof

With IPX7 (IEC 60529 standard) water protection class Core thermal imaging devices can be operated in the conditions of precipitation of any intensity and withstand a short underwater submersion.

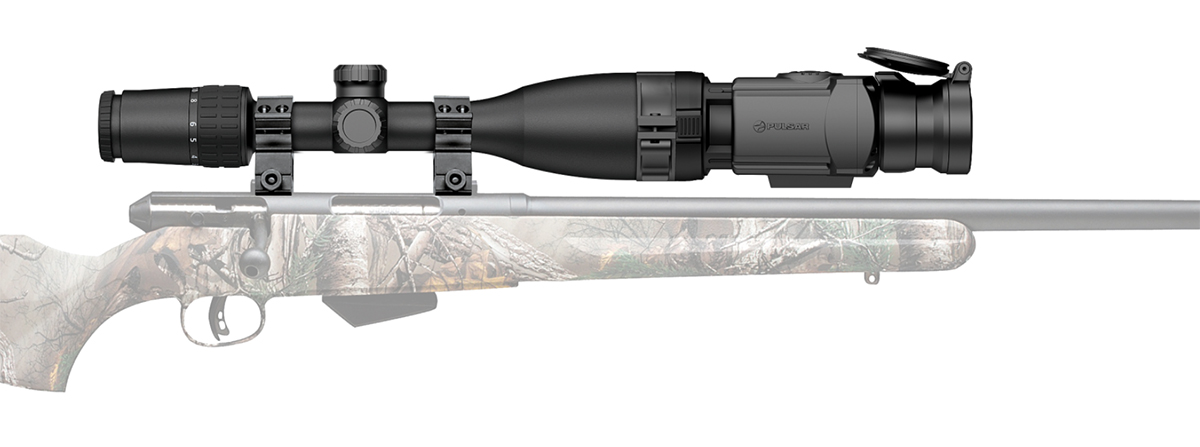

 Compatible With Various Day Optics

Attachment allows to turn the majority of day sights with lens diameters from 40 mm to 56 mm into a thermal sight, ensuring constant position of POI. Quick-release bayonet mount allows remove it from the scope in seconds.

 Wide Range of Operating Temperatures

Ability to operate in normal mode at sub-zero temperatures is due to the use of a frost-resistant AMOLED 640x480 display featuring fast response and provides crisp image when observing dynamic object.

Media Gallery






Main
Sensor
384x288 pix. @ 17 µm
Objective lens
F50/1.2
Magnification in monocular mode / attachment mode, x
4.1 – 8.2 / -
Detection range, m
1800
Sensor
Type
uncooled
Resolution, pixels
384x288
Pixel pitch, µm
17
Frame rate, Hz
50
Optics
Objective lens
F50/1.2
Magnification in monocular mode / attachment mode, x
4.1 – 8.2 / -
Field of view (HxV), degrees / m @ 100 m
5.6x4.2 / 9.7x7.3
Recommended magnification of the day sight, x
2 – 5
Display
Type
AMOLED
Resolution, pixels
640x480
Range Performance
Detection range, m
1800
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPХ7
Operating temperature range, °С
-25 – +50
Weight & Size
Dimensions, mm
190x65x60
Weight, kg
0.4
Power Supply
Output voltage, V
5 – 7.2
Battery type
2xCR123A
Operating time on battery pack (at t=22°C), h *
4
External power supply, V
5V
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules
6000
Shock resistance on the smooth-bore rifles, caliber
12

Downloads

User Manual:

Click Here

Booklet:

Click Here
